G Frequency Sampling Filter Derivations

While much of the algebra related to frequency sampling filters is justifiably omitted in the literature, several derivations are included here for two reasons: first, to validate the equations used in Section 7.5; and second, to show the various algebraic acrobatics that may be useful in your future digital signal processing analysis efforts.

G.1 Frequency Response of a Comb Filter

The frequency response of a comb filter is Hcomb(z) evaluated on the unit circle. We start by substituting ejω for z in Hcomb(z) from Eq. (7-37), because z = ejω defines the unit circle, giving

(G-1)


Factoring out the half-angled exponential e–jωN/2, we have

(G-2)


Using Euler’s identity, 2jsin(α) = ejα – e–jα, we arrive at

(G-3)


Replacing j with ejπ/2, we have

(G-4)


Determining the maximum magnitude response of a filter is useful in DSP. Ignoring the phase shift term (complex exponential) in Eq. (G-4), the frequency-domain magnitude response of a comb filter is

(G-5)


with the maximum magnitude being 2.

G.2 Single Complex FSF Frequency Response

The frequency response of a single-section complex FSF is Hss(z) evaluated on the unit circle. We start by substituting ejω for z in Hss(z), because z = ejω defines the unit circle. Given an Hss(z) of

(G-6)

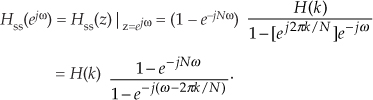

we replace the z terms with ejω, giving

(G-7)


Factoring out the half-angled exponentials e–jωN/2 and e–j(ω/2 − πk/N), we have

(G-8)


Using Euler’s identity, 2jsin(α) = ejα – e–jα, we arrive at

(G-9)


Canceling common factors and rearranging terms in preparation for our final form, we have the desired frequency response of a single-section complex FSF:

(G-10)


Next we derive the maximum amplitude response of a single-section FSF when its pole is on the unit circle and H(k) = 1. Ignoring those phase shift factors (complex exponentials) in Eq. (G-10), the amplitude response of a single-section FSF is

(G-11)


We want to know the value of Eq. (G-11) when ω = 2πk/N, because that’s the value of ω at the pole locations, but |Hss(ejω)|ω=2πk/N is indeterminate as

(G-12)

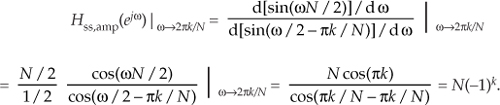

Applying the Marquis de L’Hopital’s Rule to Eq. (G-11) yields

(G-13)


The phase factors in Eq. (G-10), when ω = 2πk/N, are

(G-14)


Combining the result of Eqs. (G-13) and (G-14) with Eq. (G-10), we have

(G-15)


So the maximum magnitude response of a single-section complex FSF at resonance is |H(k)|N, independent of k.

G.3 Multisection Complex FSF Phase

This appendix shows how the (−1)k factors arise in Eq. (7-48) for an even-N multisection linear-phase complex FSF. Substituting the positive-frequency, 0 ≤ k ≤ (N/2)–1, |H(k)|ejϕ(k) gain factors, with ϕ(k) phase values from Eq. (7-46), into Eq. (7-45) gives

(G-16)


where the subscript “pf” means positive frequency. Focusing only on the numerator inside the summation in Eq. (G-16), it is

(G-17)


showing how the (−1)k factors occur within the first summation of Eq. (7-48). Next we substitute the negative-frequency |H(k)|ejϕ(k) gain factors, (N/2)+1 ≤ k ≤ N–1, with ϕ(k) phase values from Eq. (7-46″), into Eq. (7-45), giving

(G-18)


where the subscript “nf” means negative frequency. Again, looking only at the numerator inside the summation in Eq. (G-18), it is

(G-19)


That ejπN factor in Eq. (G-19) is equal to 1 when N is even, so we write

(G-20)


establishing both the negative sign before, and the (−1)k factor within, the second summation of Eq. (7-48). To account for the single-section for the k = N/2 term (this is the Nyquist, or fs/2, frequency, where ω = π), we plug the |H(N/2)|ej0 gain factor, and k = N/2, into Eq. (7-43), giving

(G-21)


G.4 Multisection Complex FSF Frequency Response

The frequency response of a guaranteed-stable complex N-section FSF, when r < 1, is Hgs,cplx(z) with the z variable in Eq. (7-53) replaced by ejω, giving

(G-22)


To temporarily simplify our expressions, we let θ = ω − 2πk/N, giving

(G-23)


Factoring out the half-angled exponentials, and accounting for the r factors, we have

(G-24)


Converting all the terms inside parentheses to exponentials (we’ll see why in a moment), we have

(G-25)


The algebra gets a little messy here because our exponents have both real and imaginary parts. However, hyperbolic functions to the rescue. Recalling when α is a complex number, sinh(α) = (eα – e–α)/2, we have

(G-26)


Replacing angle θ with ω − 2πk/N, canceling the –2 factors, we have

(G-27)


Rearranging and combining terms, we conclude with

(G-28)


(Whew! Now we see why this frequency response expression is not usually found in the literature.)

G.5 Real FSF Transfer Function

The transfer function equation for the real-valued multisection FSF looks a bit strange at first glance, so rather than leaving its derivation as an exercise for the reader, we show the algebraic acrobatics necessary in its development. To preview our approach, we’ll start with the transfer function of a multisection complex FSF and define the H(k) gain factors such that all filter poles are in conjugate pairs. This will lead us to real-FSF structures with real-valued coefficients. With that said, we begin with Eq. (7-53)’s transfer function of a guaranteed-stable N-section complex FSF of

(G-29)

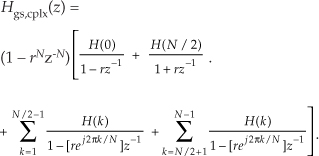

Assuming N is even, and breaking Eq. (G-29)’s summation into parts, we can write

(G-30)


The first two ratios inside the brackets account for the k = 0 and k = N/2 frequency samples. The first summation is associated with the positive-frequency range, which is the upper half of the z-plane’s unit circle. The second summation is associated with the negative-frequency range, the lower half of the unit circle.

To reduce the clutter of our derivation, let’s identify the two summations as

(G-31)


We then combine the summations by changing the indexing of the second summation as

(G-32)


Putting those ratios over a common denominator and multiplying the denominator factors, and then forcing the H(N–k) gain factors to be complex conjugates of the H(k) gain factors, we write

(G-33)


where the “*” symbol means conjugation. Defining H(N-k) = H*(k) mandates that all poles will be conjugate pairs and, as we’ll see, this condition converts our complex FSF into a real FSF with real-valued coefficients. Plowing forward, because ej2π[N–k]/N = e–j2πN/Ne–j2πk/N = e–j2πk/N, we make that substitution in Eq. (G-33), rearrange the numerator, and combine the factors of z-1 in the denominator to arrive at

(G-34)


Next we define each complex H(k) in rectangular form with an angle ϕk, or H(k) = |H(k)|[cos(ϕk) +jsin(ϕk)], and H*(k) = |H(k)|[cos(ϕk) –jsin(ϕk)]. Realizing that the imaginary parts of the sum cancel so that H(k) + H*(k) = 2|H(k)|cos(ϕk) allows us to write

(G-35)


Recalling Euler’s identity, 2cos(α) = ejα + e–jα, and combining the |H(k)| factors leads to the final form of our summation:

(G-36)

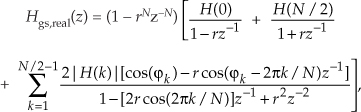

Substituting Eq. (G-36) for the two summations in Eq. (G-30), we conclude with the desired transfer function

(G-37)


where the subscript “real” means a real-valued multisection FSF.

G.6 Type-IV FSF Frequency Response

The frequency response of a single-section even-N Type-IV FSF is its transfer function evaluated on the unit circle. To begin that evaluation, we set Eq. (7-58)’s |H(k)| = 1, and denote a Type-IV FSF’s single-section transfer function as

(G-38)


where the “ss” subscript means single-section. Under the assumption that the damping factor r is so close to unity that it can be replaced with 1, we have the simplified FSF transfer function

(G-39)


Letting ωr = 2πk/N to simplify the notation and factoring HType-IV,ss(z)’s denominator gives

(G-40)


in which we replace each z term with ejω, as

(G-41)


Factoring out the half-angled exponentials, we have

(G-42)


Using Euler’s identity, 2jsin(α) = ejα – e–jα, we obtain

(G-43)


Canceling common factors, and adding like terms, we have

(G-44)


Plugging 2πk/N back in for ωr, the single-section frequency response is

(G-45)


Based on Eq. (G-45), the frequency response of a multisection even-N Type-IV FSF is

(G-46)


To determine the amplitude response of a single section, we ignore the phase shift terms (complex exponentials) in Eq. (G-45) to yield

(G-47)

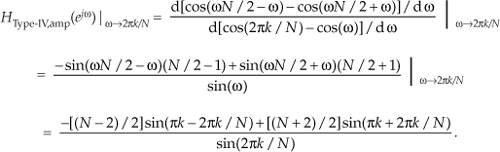

To find the maximum amplitude response at resonance we evaluate Eq. (G-47) when ω = 2πk/N, because that’s the value of ω at the FSF’s pole locations. However, that ω causes the denominator to go to zero, causing the ratio to go to infinity. We move on with one application of L’Hopital’s Rule to Eq. (G-47) to obtain

(G-48)

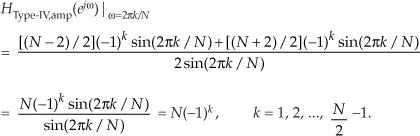

Eliminating the πk terms by using trigonometric reduction formulas sin(πk–α) = (−1)k[-sin(α)] and sin(πk+α) = (−1)k[sin(α)], we have a maximum amplitude response of

(G-49)


Equation (G-49) is only valid for 1 ≤ k ≤ (N/2)–1. Disregarding the (−1)k factors, we have a magnitude response at resonance, as a function of k, of

(G-50)


To find the resonant gain at 0 Hz (DC) we set k = 0 in Eq. (G-47), apply L’Hopital’s Rule (the derivative with respect to ω) twice, and set ω = 0, giving

(G-51)


To obtain the resonant gain at fs/2 Hz we set k = N/2 in Eq. (G-47), again apply L’Hopital’s Rule twice, and set ω = π, yielding

(G-52)
